Product Code: PCB-MTN-10DD-v1.0
Availability: Out Of Stock
Price: $0.35

Available Options

* PCB Thickness:

Qty:     - OR -   Add to Wish List
Add to Compare

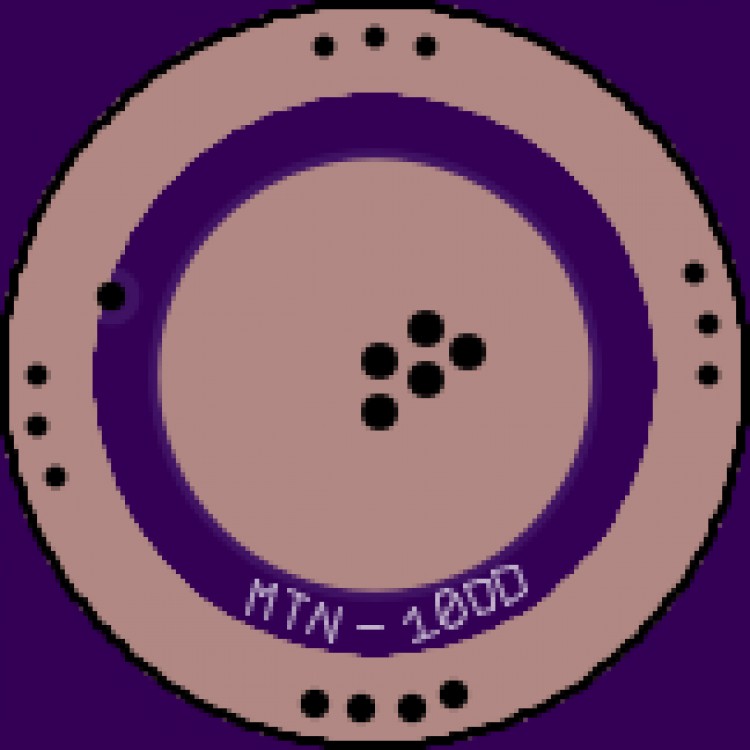

This is the bare PCB you need to build your own tiny 11mm FET driver!  DIY parts kit available here.

PCB Thickness:

  • 0.8mm
  • 1.6mm

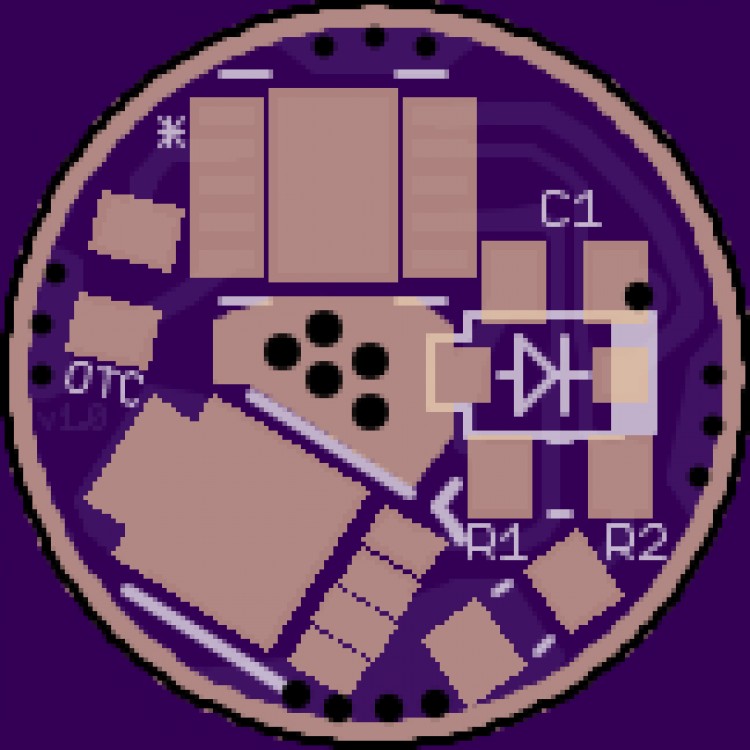

Parts List:

  • C1:  10uF 0603 (X5R or better preferred)
  • OTC: 1uF 0603 (X7R preferred)
  • R1:  19.1K 0603 1%
  • R2:  4.7K 0603 1%
  • Diode:  SOD-323 Schottky
  • MCU:  attiny13a-MMU
  • FET:  LFPAK33
