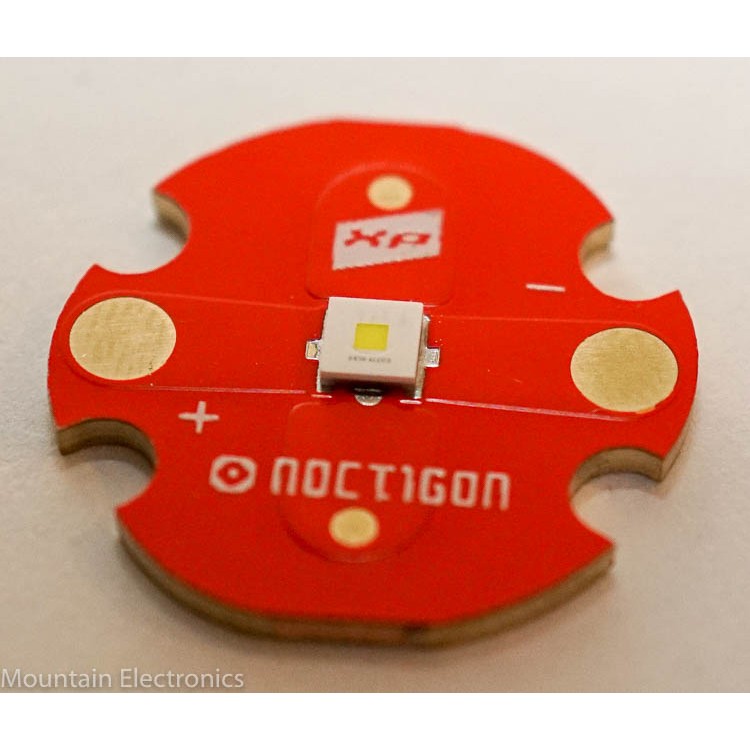

Osram CSLNM1.TG FLAT LED on 20mm Noctigon DTP MCPCB

Osram CSLNM1.TG FLAT LED on 20mm Noctigon DTP MCPCB
Product Code: OS-CSLNM1-XP20
Availability: 9
Price: $6.05

3 or more $5.85
Qty:     - OR -   Add to Wish List
Add to Compare

Osram CSLNM1.TG white flat LEDs offer a ton of throw in a tiny package!

Not recommended for direct drive / FET driver use!  Use a constant current regulated driver (buck or linear).  Absolute maximum drive current if kept cool is around 3.5A-4A.

7mm reflector opening centering ring available here.

Specifications:

  • Osram CSLNM1.TG LED
  • 1x1mm Die
  • Domeless
  • Forward Voltage:  2.75v-3.00v @ 1A
  • Luminous Flux:  315-350 lumens @ 1A
  • Color Temperature:  6000-6500K (cool white)
  • Mounted on a 20mm x 1.6mm direct-thermal-path copper MCPCB
  • Neutral thermal path
