Sanyo/Panasonic NCR18650GA 3500mAh - Flat top

Sanyo/Panasonic NCR18650GA 3500mAh - Flat top
Sanyo/Panasonic NCR18650GA 3500mAh - Flat top Sanyo/Panasonic NCR18650GA 3500mAh - Flat top Sanyo/Panasonic NCR18650GA 3500mAh - Flat top
Brand: Panasonic
Product Code: NCR18650GA
Availability: 32
Price: $9.70

2 or more $9.50
4 or more $9.40
6 or more $9.30


Available Options


Remove Storage Cases From Order:


Qty:     - OR -   Add to Wish List
Add to Compare

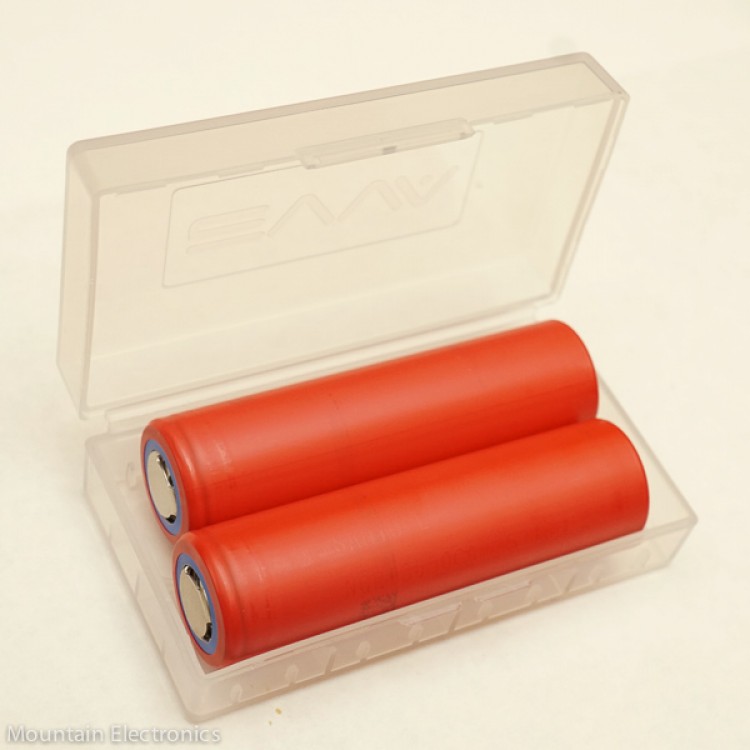

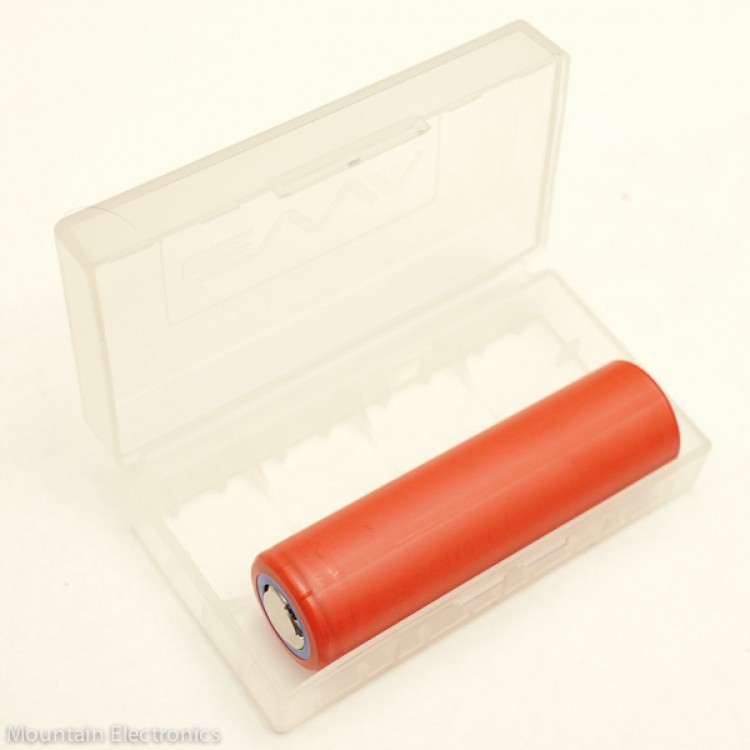

Unprotected, flat top.  Price includes storage case!  Batteries are sold individually.  The positive pole is raised enough to make contact in series.

This is Sanyo and Panasonic's and newest high discharge capable 18650 cell, rated for up to 10A continuous discharge.  It is a good compromise between IMR and regular LiCo cells, offering lower internal resistance and higher discharge rate capabilities and higher capacity than IMR.  This is a popular cell for high drain XM-L2 lights because it's lower internal resistance allows these high forward voltage LEDs to remain brighter longer.

Diameter: 18.6mm
Height: 65.5mm

Manufacturer Cell Specifications:

  • Nominal Capacity: 3500mAh
  • Charging Voltage: 4.2v
  • Maximum Charge Current: 1375mA (1000mA recommended)
  • Recommended Discharge Termination: 2.5v
  • Maximum Continuous Discharge Current: 10A

These cells, like all lithium and IMR cells, should not be discharged below 2.5 volts.
