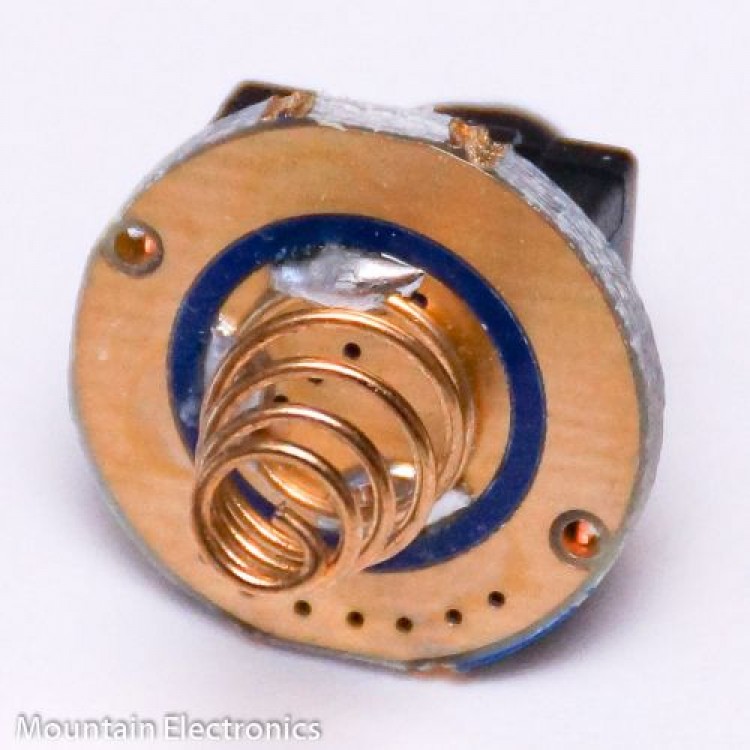

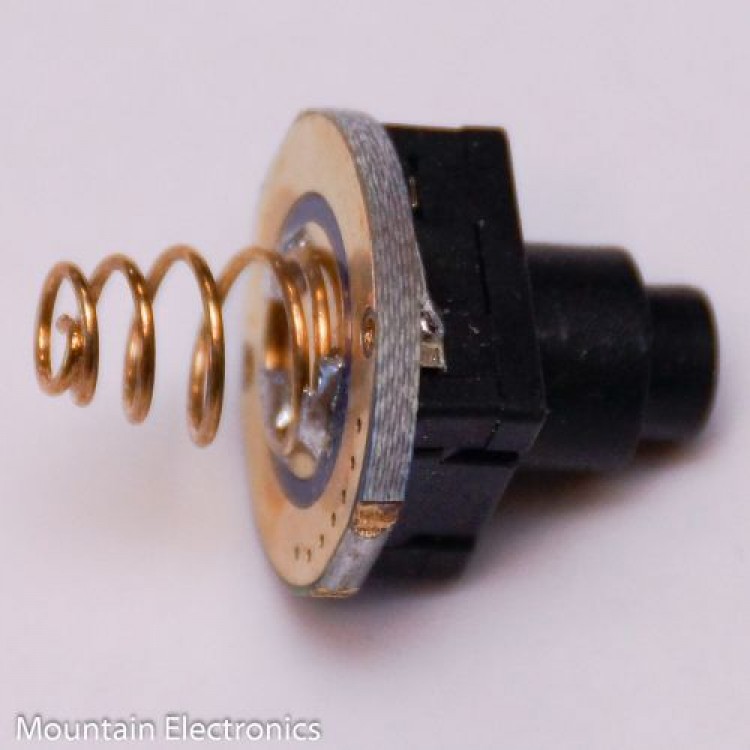

17mm Forward Clicky Switch with Spring and PCB

17mm Forward Clicky Switch with Spring and PCB
17mm Forward Clicky Switch with Spring and PCB 17mm Forward Clicky Switch with Spring and PCB
Product Code: 17MMFWDCLK-PCB
Availability: Out Of Stock
Price: $2.75

Available Options


* Copper Braid Tailcap Spring:

Qty:     - OR -   Add to Wish List
Add to Compare

This forward clicky switch is ready to run, with a pre-soldered spring and PCB.

This switch will not fit or work in any of the Convoy lights without extensive modifications.  We do not sell a direct drop-in forward clicky switch for any of the Convoy lights.

Specifications:

  • Gold plated spring and contacts
  • PCB diameter: 17mm
  • PCB thickness: 1.25mm
  • Spring length: 11mm
  • Switch height: 12.85mm
  • Total height with spring: 25.5mm
  • Negative contact width: 0.6mm

Copper Braid Tailspring Option

  • Reduces electrical resistance, allowing for higher current draw and higher efficiency
  • Highly recommended for lights that draw over 3A
  • This service may require an additional 1-3 business days to complete
