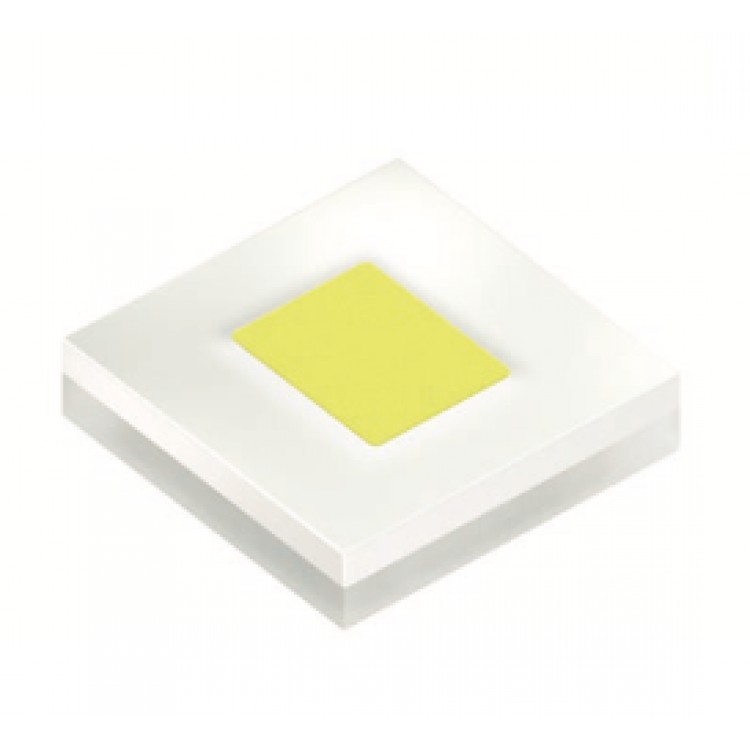

Osram CSLPM1.TG FLAT LED - BARE

Product Code: OS-CSLPM1-BARE
Availability: 483

Price: $5.50

Qty: - OR - Add to Wish List
Add to Compare

Osram CSLPM1.TG white flat LEDs offer a good balance of throw and lumens in a tiny package!

Absolute maximum drive current if kept cool is around 6A-7A mounted on a good DTP CU MCPCB. Some really good 18650-20700-21700+ batteries may be too much for this LED if used in a direct-drive configuration.

7mm reflector opening centering ring available here.

Specifications:

Osram CSLPM1.TG LED
1.25x1.6mm Die
Domeless
Forward Voltage: 2.75v-3.00v @ 1.4A
Luminous Flux: 500-560 lumens @ 1.4A
Color Temperature: 6000-6500K (cool white)
Bare LED (must be reflowed before it can be used!)
Neutral thermal pad (electrically isolated)
