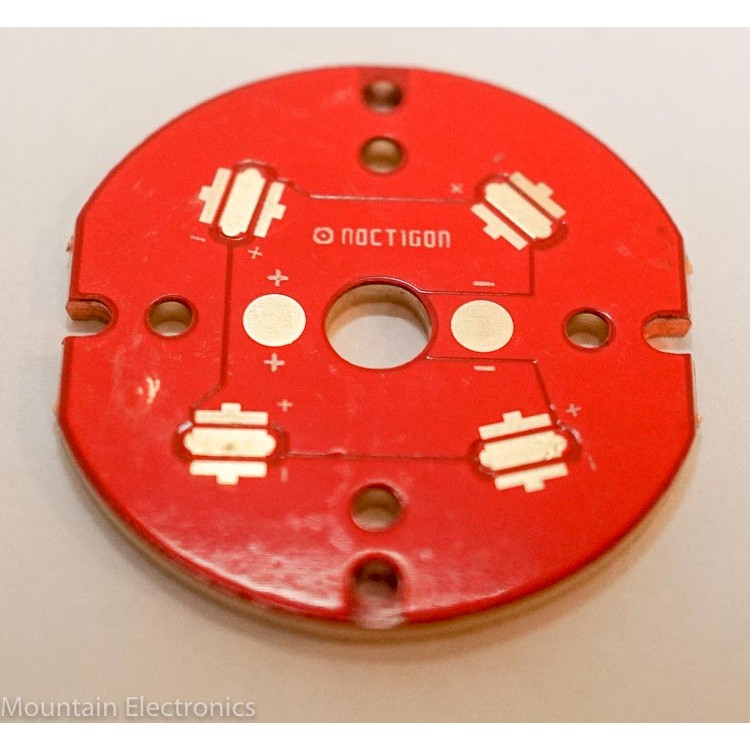

Noctigon 4XP 33MM 4P Quad LED Copper MCPCB

Noctigon 4XP 33MM 4P Quad LED Copper MCPCB
Brand: Noctigon
Product Code: NOCT-XP33-QUAD
Availability: Out Of Stock
Price: $4.99

Available Options

Reflow LED (optional):

Qty:     - OR -   Add to Wish List
Add to Compare


  • Copper MCPCB for the following LEDs:
    • ​Cree:
      • ​XP-E, XP-E2
      • XP-G, XP-G2, XP-G3
      • XP-L, XP-L2, XP-L HI
      • XHP35, XHP35 HI
    • ​Nichia
      • ​219B, 219C
      • 319AT
    • ​Samsung 351D
  • Direct thermal path
  • Quad LED (parallel configuration)
  • Special LED positioning for better beam pattern
  • Wide heavy copper traces
  • Easy wire connections, only two pads.
  • Gold plated pads and copper core
  • Flat bottom surface
  • Compatible with Ledil Angie Series Optics
    • Angie-S (Narrow Spot Beam) Available Here
  • Diameter: 33mm, Thickness: 2mm

Reflow Service

We will reflow any (4) in-stock bare XP-G2, Nichia 219/319, Samsung 351D, or XP-L LEDs onto this MCPCB.
If you purchase multiple bare LED types, please indicate which you would like to be reflowed in your order checkout comments.


  • 1.  Bare LED:  Reflow four (4) bare LEDs onto this MCPCB (no cost).
