16mm Complete Reverse Clicky Dual-Spring Switch --- C8 / S2+ / E2L

16mm Complete Reverse Clicky Dual-Spring Switch --- C8 / S2+ / E2L
16mm Complete Reverse Clicky Dual-Spring Switch --- C8 / S2+ / E2L
Product Code: 16MM-RCSW-DUALSP
Availability: Out Of Stock
Price: $5.05
Qty:     - OR -   Add to Wish List
Add to Compare

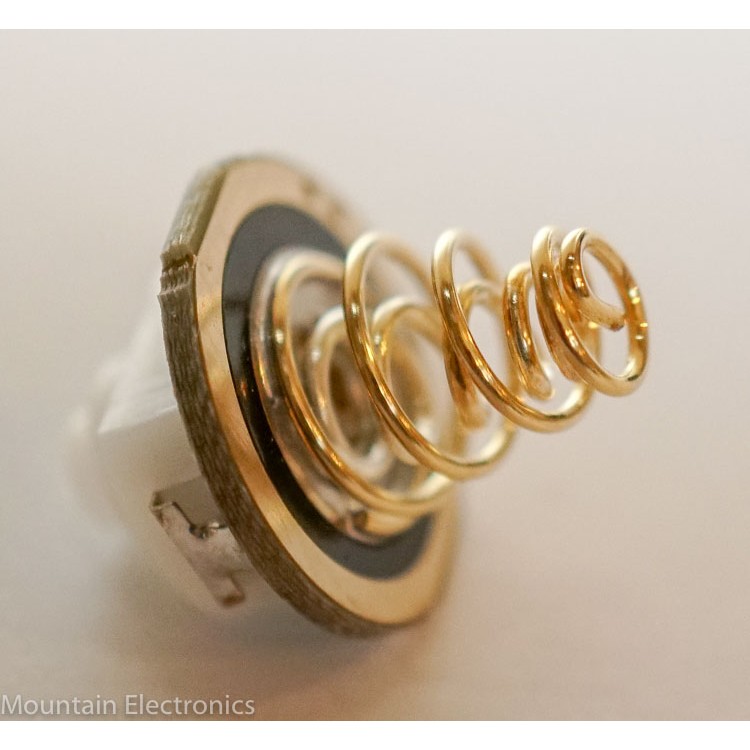

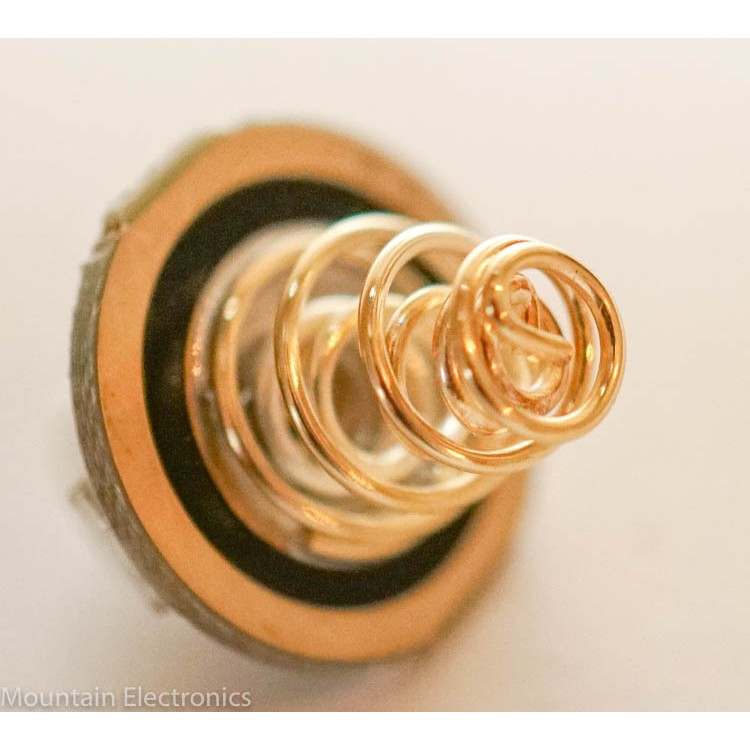

This 16mm switch asssembly has had its current carrying capacity significantly increased with a low resistance BeCU spring stacked underneath the steel gold plated spring.  This switch assembly is cleaned and ready to install in your light!

Specifications:

  • 1288 Reverse Clicky Switch
  • 16mm PCB
  • Dual Spring (Au Steel + Ag BeCU) for Increased Current Capability
  • Dimensions:
    • Diameter:  ~16mm
    • Switch Height (measured from PCB):
      • Switch Body: 5mm
      • Switch Button Depressed:  7.6mm
      • Switch Button Not Depressed:  8mm
    • Spring Height (measured from PCB): 10.5mm

Compatability:

  • Fits the Convoy C8, S2+, and S6.
  • Fits the Jaxman E2L.
  • May also fit other lights, but please check your dimensions to make sure.
