22mm 16x 7135 6A LED DRIVER

Product Code: 22MM-7135-DRV-AW
Availability: 20

Price: $14.54

Available Options

Increase/Reduce Driver Current 7135:

* Wires + Spring Option:

Qty: - OR - Add to Wish List
Add to Compare

0 reviews | Write a review

Description Reviews (0) Related Products (5)

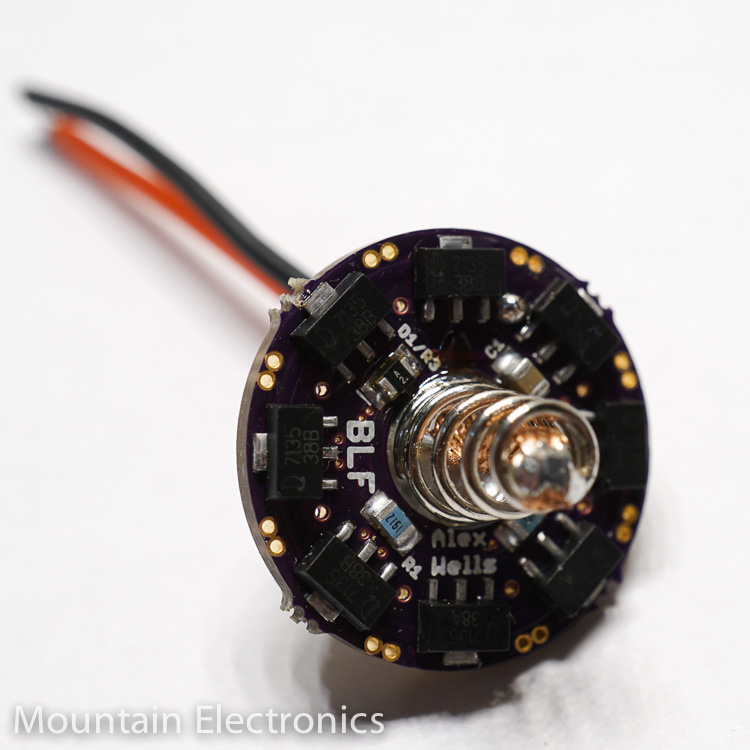

This driver, designed by Alex Wells (wight), is a great option for a regulated 22mm driver. With LED current options ranging from ~1A all the way up to 6A, you can easily dial in your LED current.

Because each driver is custom built to order, there is a 3-10 business day waiting period after ordering this driver.

As usual, there are plenty of different firmware options available! (See below)

Increase/Reduce Driver Current 7135 Option

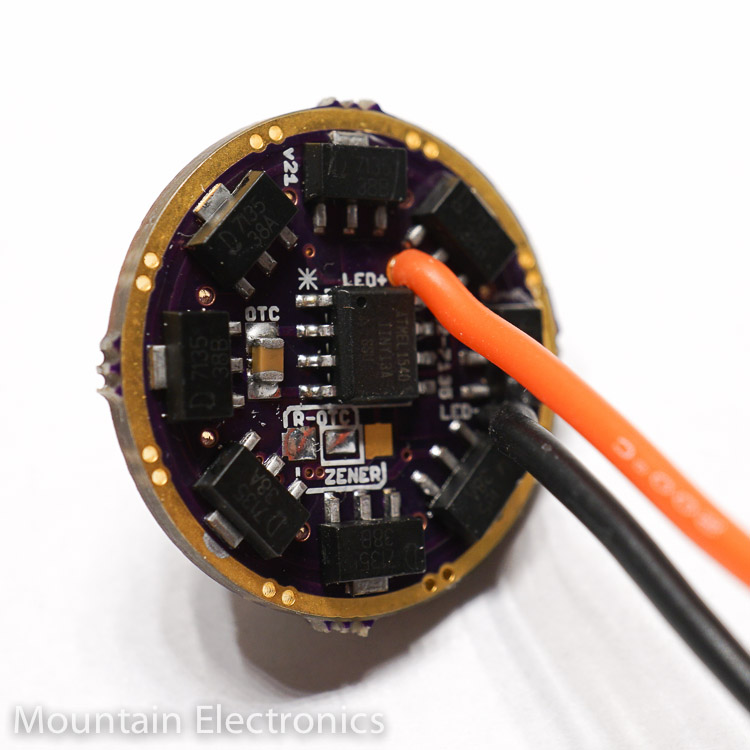

By default, the 22mm 7135 driver comes with 16*380mA 7135 chips. You can decrease the output current by removing 7135 chips, each chip removed subtracts around 380mA.

Features:

*Input voltage: 2.8V - 4.5V

*Default Current: 6A (without removing any 7135 chips)

*Constant current

*PCB diameter: 22mm

*PCB thickness: 1.6mm

*Components height: 4.7mm

*Reverse polarity protection

*Gold plated contacts

*22 AWG Silicone+Teflon Leads Pre-Soldered

Spring / Contact Options

No Spring or Contact Soldered
QLITE Spring - This short but stiff option works well for most lights.
Copper Braided Spring - This is a taller and wider spring that has been copper braided to reduce electrical resistance.
Brass Button - A short brass button to help raise the battery contact surface 2mm. Low resistance but no spring action.

FIRMWARE OPTIONS --- CLICKY SWITCH (Normal Rear Switch)

All 22mm 16x7135 Drivers now come with guppy3drv as the only option (attiny25 MCU)

guppy3drv is a very configurable firmware that offers a lot of advantages.

For more information about this firmware, click here.
