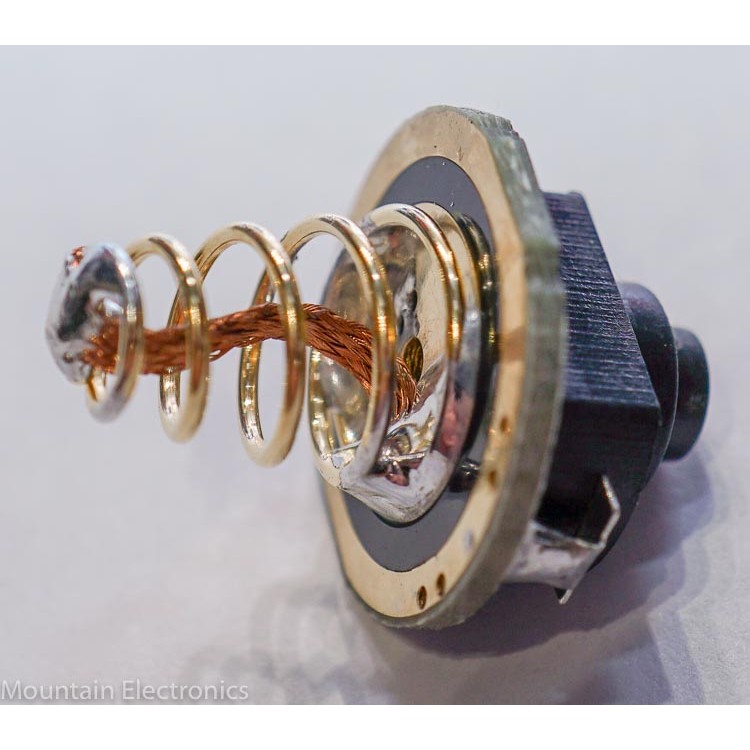

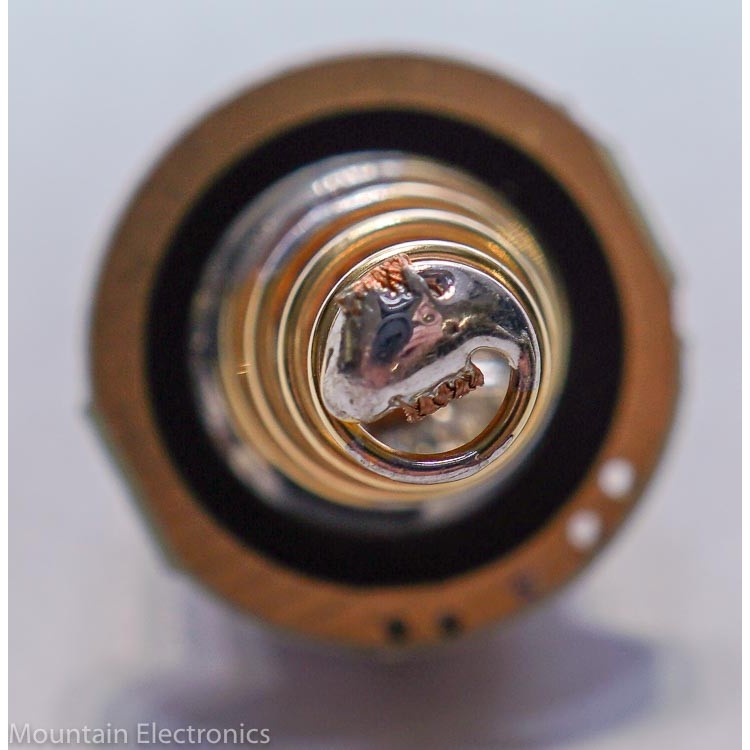

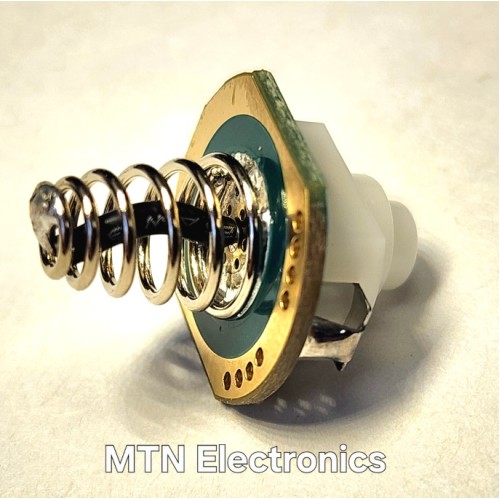

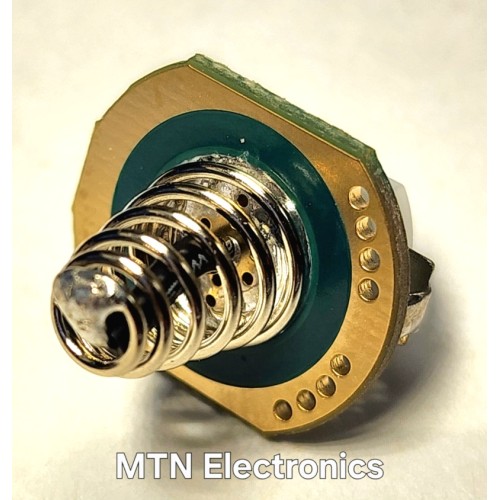

This 16mm switch assembly has been pre-bypassed with silicone wire for increased current handling and is ready to install in your light!

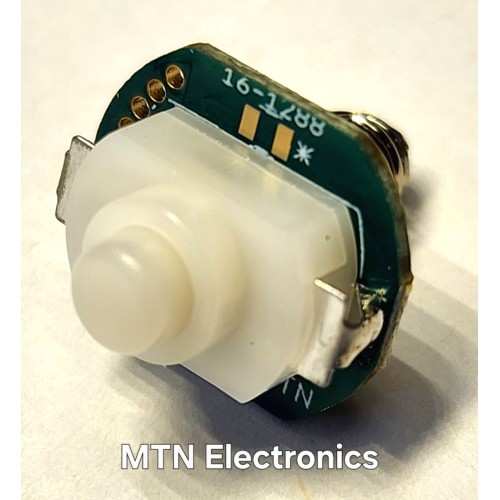

This updated version uses a gold-plated PCB with lots of vias for increased current carrying capacity with a high-quality nickel-plated spring.

Specifications:

• 1288 Reverse Clicky Switch
• 16mm Nominal OD
• Bypassed Spring for Increased Current Capability
• Dimensions:
  • Diameter:  ~16mm
  • PCB Thickness:  0.8mm
  • Switch Height (measured from PCB):
    • Switch Body: 5mm
    • Switch Button Depressed:  7.6mm
    • Switch Button Not Depressed:  8mm
  • Spring Height (measured from PCB):
    • 10.5mm Uncompressed
    • 4.5mm Compressed

Compatability:

• Fits the Convoy C8, S2+, and S6.
• Fits the Jaxman E2L.
• May also fit many other lights, but please check your dimensions to make sure.
