(3) Nichia NVSW319AT D440 5000K 70+ CRI LEDs on 20mm 3XP Copper Noctigon + Pre-Bridged

Product Code: 3XP-319AT-D440-JP
Availability: 3

Price: $12.49

Qty: - OR - Add to Wish List
Add to Compare

This LED maintains Nichia's excellent color quality, while offering even more lumens than the 219C (although the 219C gives you more throw/intensity at the same current). The unique hexagonal die provides excellent optical characteristics.

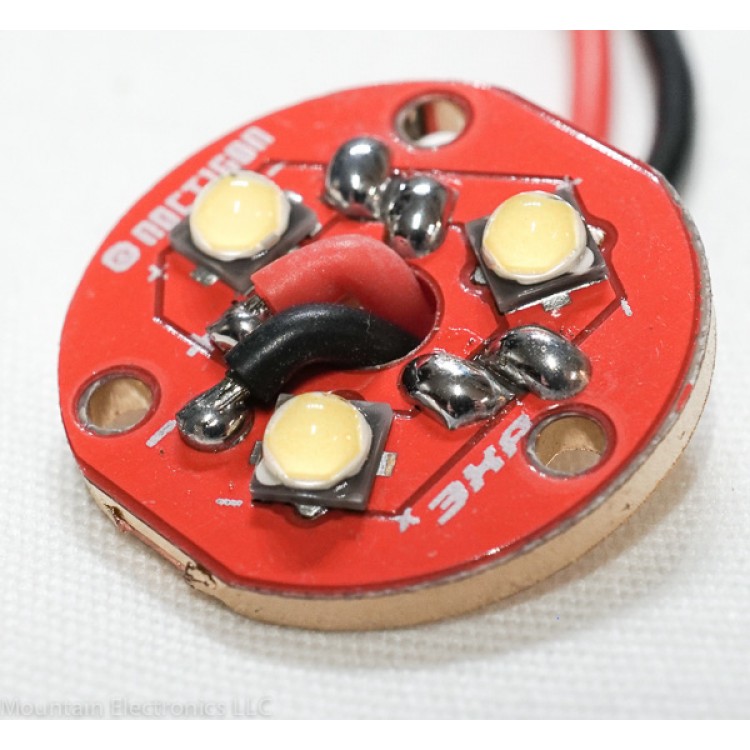

Three LEDs mounted on a 20mm Triple Noctigon direct-thermal path copper MCPCB. These LEDs have a very low vF (forward voltage) so they will pull a lot of amps with an FET driver (use with caution!).

Configurable in either series or parallel configuration (pre-bridged by default in parallel configuration, but can also be configured in series on request).

Specifications:

Product Code: NVSW319AT
5000K Color Temperature
D440 Flux Bin
70+ CRI
