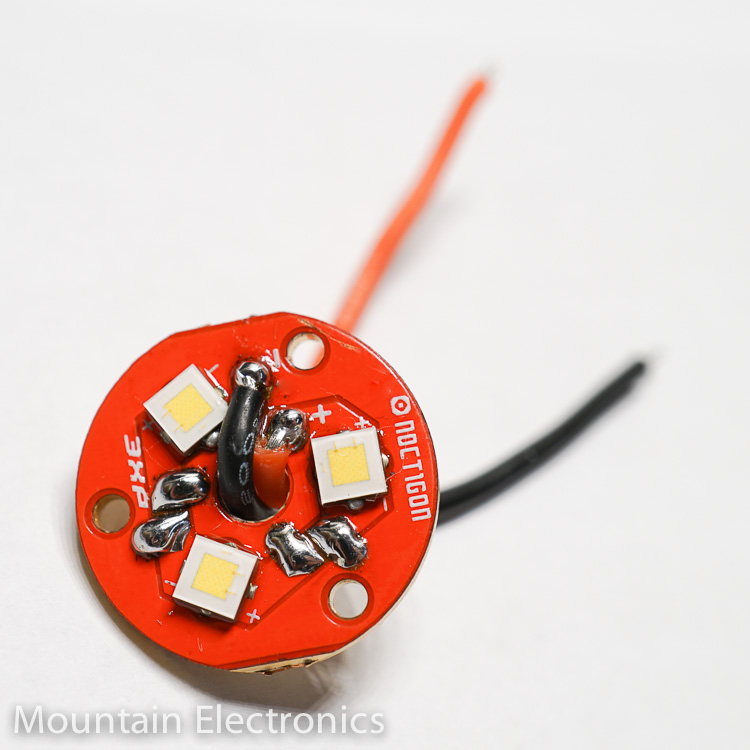

(3) CREE XP-L High-Intensity V2 5D LEDs on NOCTIGON 3XP MCPCB + PRE-BRIDGED

(3) CREE XP-L High-Intensity V2 5D LEDs on NOCTIGON 3XP MCPCB + PRE-BRIDGED
(3) CREE XP-L High-Intensity V2 5D LEDs on NOCTIGON 3XP MCPCB + PRE-BRIDGED
Brand: Noctigon
Product Code: 3XP-XPL-HI-V2-5D-BR
Availability: 21
Price: $19.50
Qty:     - OR -   Add to Wish List
Add to Compare

These are the newest XP-Ls that come from Cree "pre-dedomed".   These fit under the Carclo optics without any modification and provide the same amount of throw as a dedomed regular XP-L.



This LED set comes pre-soldered in parallel configuration.  If you would like it in series configuration instead, please let us know in the checkout comments.



Description:

  • CREE XP-L High-Intensity V2 5D LEDs on Noctigon 3XP MCPCB
  • Color temperature: ~4000K
  • Tint:  Neutral white
  • Direct thermal path
  • Wide, heavy copper traces
  • Pre-configured for parallel configuration, but can be reconfigured to series.
  • Easy wire connection, only 2 leads.
  • Gold plated pads and copper core
  • Flat bottom surface
  • Suitable for indoor, outdoor and flashlight use
  • Compatible with Carclo 10507, 10508, 10509, 10510 and 10511 optics***
  • Diameter: 20mm, Thickness: 1.75mm
  • Silicone insulated leads already soldered, each 5cm long, 22 AWG, High Temp, 60 strands
