22mm Single-Sided FET+7135 Driver PCB - V1.13 - MTN-22DDm

22mm Single-Sided FET+7135 Driver PCB - V1.13 - MTN-22DDm
22mm Single-Sided FET+7135 Driver PCB - V1.13 - MTN-22DDm
Product Code: MTN22DDm-PCB-V1.13
Availability: 41
Price: $1.25

3 or more $1.15
10 or more $1.00
Qty:     - OR -   Add to Wish List
Add to Compare

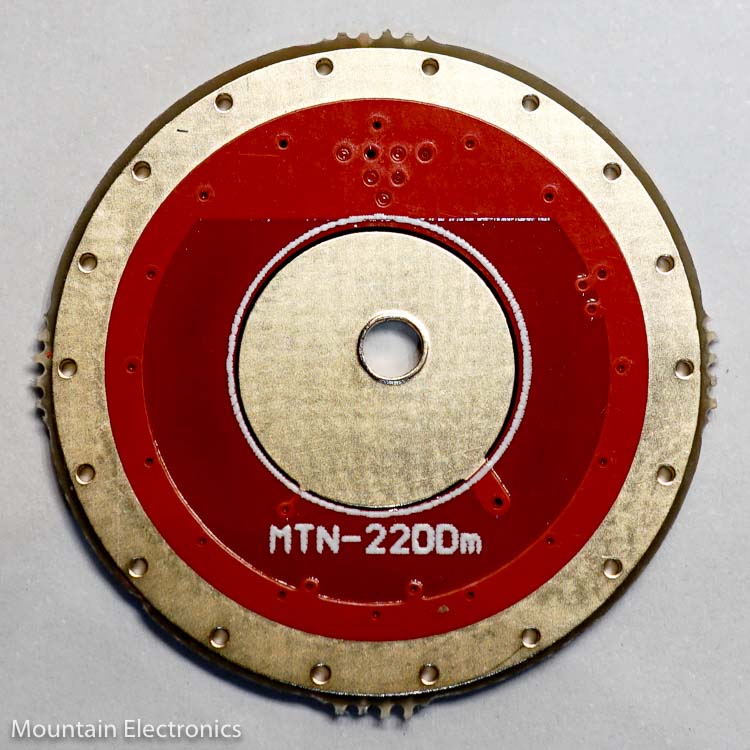

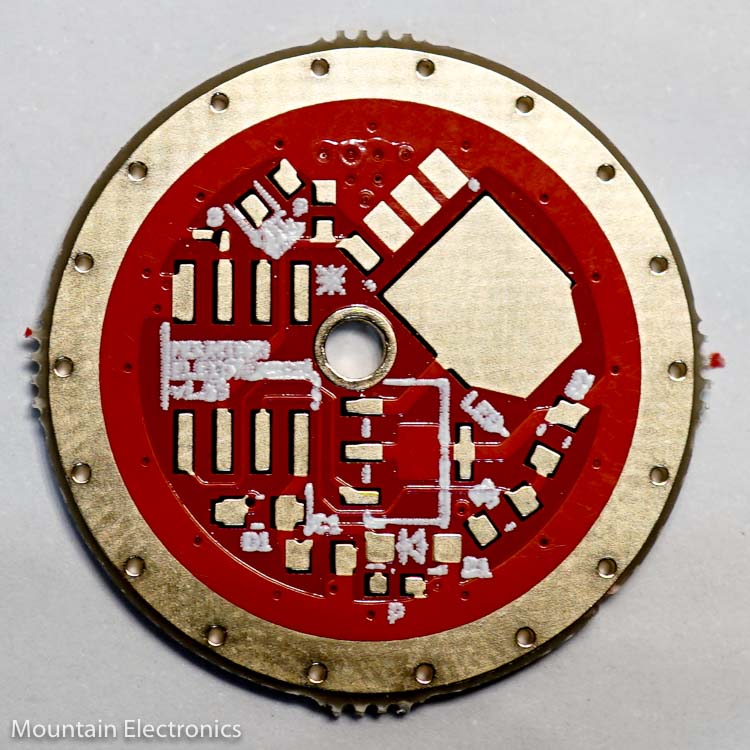

This is the bare PCB you need to build your own 22mm FET+7135 driver!  DIY parts kit available here.

Specifications:

  • Fully stable with attiny25
  • 2 oz. heavy copper
  • Red solder mask
  • 1.2mm PCB thickness
  • 22mm diameter

Parts Required:

  • FET: LFPAK56 N-Channel Mosfet
  • 7135:  AMC7135 Linear Regulator
  • D1:  SOD-323 / 0805 / 0603 Schottky diode
  • Z1:  SOD-323 Zener Diode - 4.3v <--> 5.1v
  • C1:  10uF MLC capacitor, 0603 or 0805 (X7R preferred)
  • R1:  19.1K, 1% resistor, 0603 or 0805
  • R2:  4.7K, 1% resistor, 0603 or 0805
  • UI:  ATTINY13A MCU, SSH or SSU variant
    • * symbol indicates MCU Pin 1 location
  • Spring / LED leads
  • OTC:  1uF MLC capacitor, 0603 or 0805 (X7R preferred)
    • Pad with side closest to MCU can also be used as electronic switch pad
  • P:  2x ~40K-80K 0402 or 0603 resistors
